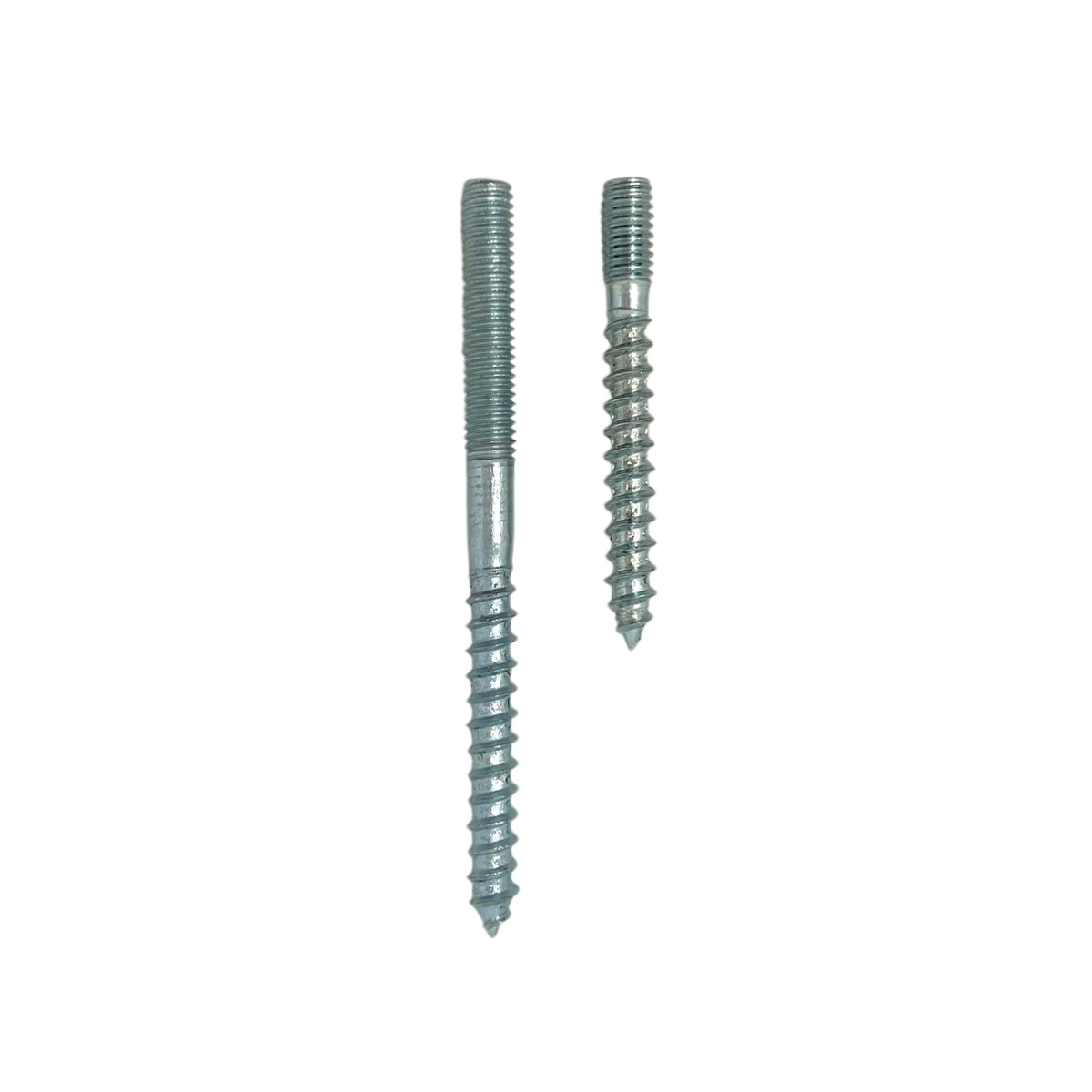

Screw Pin M4 - M10 Zinc
Item no: 12.13.205-0-SI
Shelf: SE ARTNR
Hanger bolts in different lengths.
Threaded stud with a metric thread at one end and a standard wood-screw thread at the other.
Often used when mounting a knob to a wall, for example.
Available in M4, M5, M6, M8 and M10 and in various lengths. Detailed Dimensions and Lengths Are Listed Below in the Product Description.
Incl. VAT
Size
Product information
Sizes (See Image 2 for Dimension Definitions):
M4 x 20mm.
A: 20 mm.
B: 5 mm.
C: 15 mm.
M4 x 30mm.
A: 30 mm.
B: 10 mm.
C: 20 mm.
M4 x 40mm.
A: 40 mm.
B: 10 mm.
C: 30 mm.
M4 x 50mm.
A: 50 mm.
B: 20 mm.
C: 30 mm.
M5 x 50mm.
A: 50 mm.
B: 17 mm.
C: 33 mm.
M6 x 40mm. with Hex Socket in the Head for Easier Installation
A: 40 mm.
B: 20 mm.
C: 20 mm.
M6 x 50mm. with Torx in the Head for Easier Installation
A: 50 mm.
B: 10 mm.
C: 40 mm.
M6 x 70mm. with Hex Socket in the Head for Easier Installation
A: 70 mm.
B: 30 mm.
C: 40 mm.
M6 x 80mm. with Hex Socket in the Head for Easier Installation
A: 80 mm.
B: 30 mm.
C: 50 mm.
M8 x 50mm.
A: 50 mm.
B: 25mm.
C: 25 mm.
M8 x 60mm. with Hex Socket in the Head for Easier Installation
A: 60 mm.
B: 30 mm.
C: 30 mm.
M8 x 70mm.
A: 70 mm.
B: 35 mm.
C: 35 mm.
M8 x 80mm.
A: 80 mm.
B: 40 mm.
C: 40 mm.
M8 x 100mm. with Hex Socket in the Head for Easier Installation
A: 100 mm.
B: 40 mm.
C: 60 mm.
M10 x 70mm.
A: 70 mm.
B: 35 mm.
C: 35 mm.
M10 x 80mm.
A: 80 mm.
B: 40 mm.
C: 40 mm.
M10 x 90mm.
A: 90 mm.
B: 50 mm.
C: 40 mm.
M10 x 120mm. with Hex Socket in the Head for Easier Installation
A: 120 mm.
B: 60 mm.
C: 60 mm.
M10 x 140mm. with Hex Socket in the Head for Easier Installation
10 x 140 mm.
A: 140 mm.
B: 80 mm.
C: 60 mm.
M10 x 150mm. with Hex Socket in the Head for Easier Installation
A: 150 mm.
B: 90 mm.
C: 60 mm.
