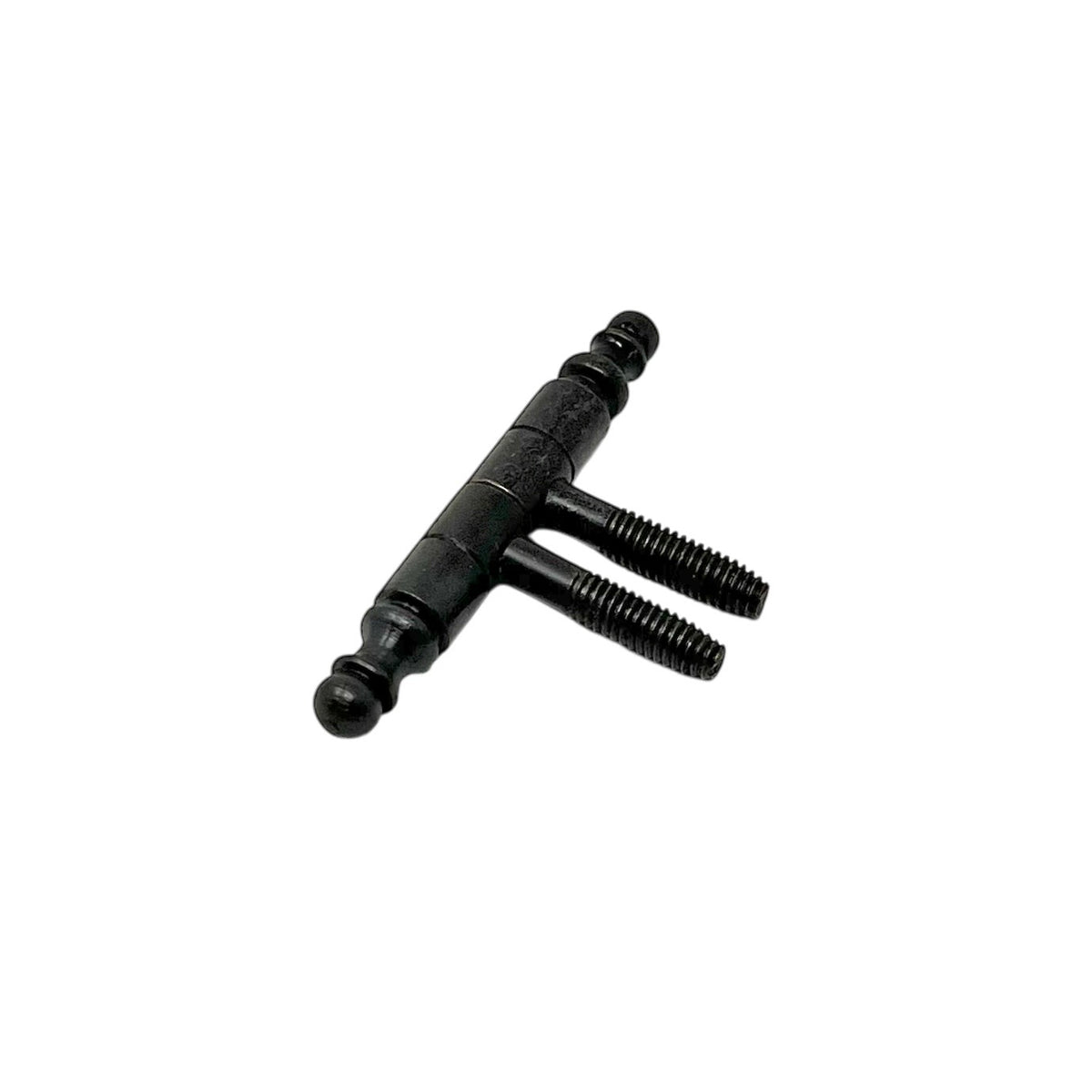

Pin hinge 5,5 mm Black
Item no: 01.0050000903-CF
Shelf: L9:K/HU:137
Decorative black lacquered pin hinge.
This decorative pin hinge is commonly used on half-overlay or rebated cabinet doors.
Pre-drill holes in both the cabinet door and carcass, then screw the hinge into place.
The hinges must be aligned during installation and all screwed in to the same depth.
Otherwise, the hinge may be overstressed and break when the cabinet or wardrobe door is opened.
View more of our pin hinges here.
Screws included
In stock
24 kr
Incl. VAT
60 days right of return (open purchase)Fast deliveriesPersonal service – 031-50 89 90
Pay securely with
Product information
Dimensions when extended:
| Height | 65mm |
| Overall width | 60mm (including joint.) |
| Drilling depth | 20mm |
| Drill diameter | 5,5mm |
| Thickness | 1mm |
