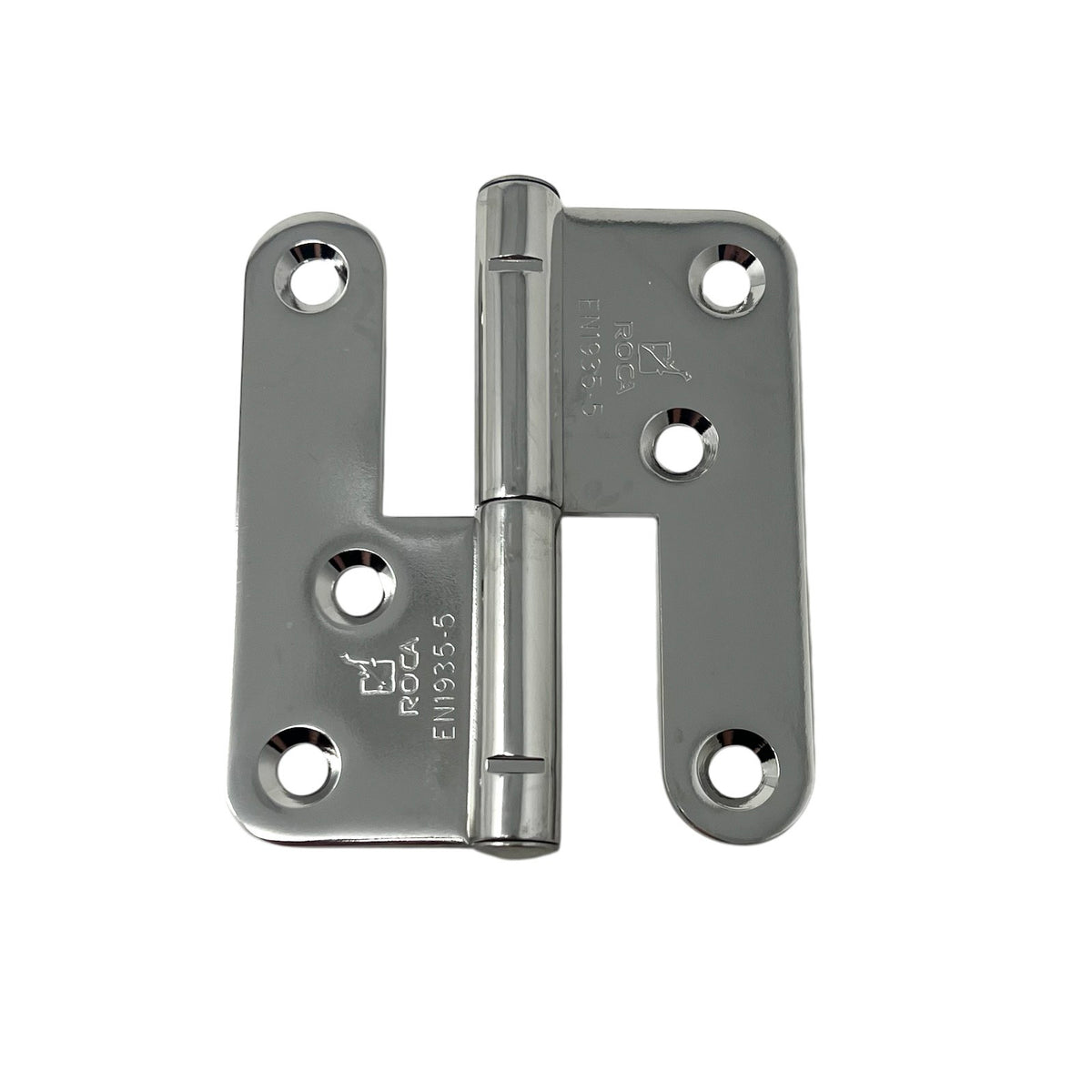

Lift-off hinge 3220 98 mm Stainless steel
Shelf: L24:E/D:9
98 mm lift-off hinge in acid-resistant stainless steel.
A lift-off hinge primarily intended for internal doors.
Thanks to their acid-resistant finish, these require no additional paint or corrosion protection and can be fitted directly to the door leaf for a very long service life.
Hinge Model 3220 Has a 98 mm Leaf, Corresponding to a Classic Dimension for Standard Interior Doors.
Incl. VAT
Handing
Product information
Dimensions when extended.
| Height (H) | 98 mm |
| Width (L) | 80 mm |
| Leaf width | 34 mm / 22 mm |
| Material thickness | 2,5 mm |
Post diameter 13,5 mm.
Pin diameter approx. 8 mm.
Available in both right- and left-handed versions.
Optionally Supplied with TFX RFR A2 5 x 35 mm Screws. Please Note These Screws Are Not Acid-Resistant.
PLEASE NOTE: These hinges are designed to be recessed and fitted between the door and frame. Right- or left-handed orientation is determined while standing in front of the closed door with the hinges visible.
When Surface-Mounting These Hinges on Frame and Door, Reverse the Usual Right-/Left-Handed Selection.
